60PI
Tandem Axle Pipe Top Utility Trailer
Haul light-duty equipment wherever the job takes you with confidence. The 60PI tandem axle pipe top utility trailer from Big Tex Trailers is built for the task. With a 6,000-pound G.V.W.R. and a reinforced structure, it delivers the strength and reliability you need to transport small tractors, side-by-sides, and more — safely and securely. Plus, optional slide-in ramps make loading and unloading a breeze, so you can stay focused on the job. Our products are built for convenience and durability.
With you for the long haul™
| Standard Feature | Available Options | |
|---|---|---|
| Axles | 2 - 3,500# Premium, Cambered Axles with Quick-Lubricating Hubs | |
| Brakes | Electric Brake on Front Axle | Electric Brakes on 2nd Axle |
| Suspension | Multi-Leaf Spring w/ Equalizer | |
| Coupler | 2" A-Frame | 2" Forged Coupler 2-5/16” Forged Coupler 2-5/16” Stamped Coupler |
| Safety Chains | 1/4" Grd. 30 w/ Safety Latch Hook (2 ea) | |
| Jack | 2,000# Top Wind, Set-Back Jack with Removable Sand Foot | 2,000# Fold-Up Jack |
| Frame | 3" x 2" x 3/16" Angle | |
| Cross-Members | 3” x 2” x 3/16” Angle | |
| Floor | Treated Pine Floor | Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot) |
| Fenders | 9" x 72" Rolled Formed w/ Back | |
| Ramps | 4' Tall Rear Ramp Gate w/ Coil Spring Assist | |
| Stake Pockets | Additional Stake Pockets (Each) | |
| Trailer Plug | 7-Way RV | |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance | |
| Wiring | Grommet-Mounted Lifetime L.E.D. Lighting | |
| Tires | ST205/75 R-15 Load Range C | |
| Bolt Pattern | 5 Bolt | |
| Spare Mount | Side Spare Tire Mount | |
| Spare Tire | Spare Tire (ST205/75R-15 LR-C) | |
| Paint Type | Professional Finish w/ Primer Standard | |
| Paint Color | Black | |
| Tie-Downs | (4) Tie Down Loops Inside Bed | Additional Tie Loops |
| Sides | 17" Tall Open sides with 2” Angle uprights and 2" x 2" Square Tubing Top Rail | 2' High Sides (Open, Total Height with Top Rail) 3’ High Sides (Open, total height with Top Rail) 4’ High Sides (Open, total height with Top Rail) Car Hauler Style (No Side Rails) Enclose Sides w/ Expanded Metal (Per Square Foot) Enclose Sides w/ Sheet Metal (Per Square Foot) |

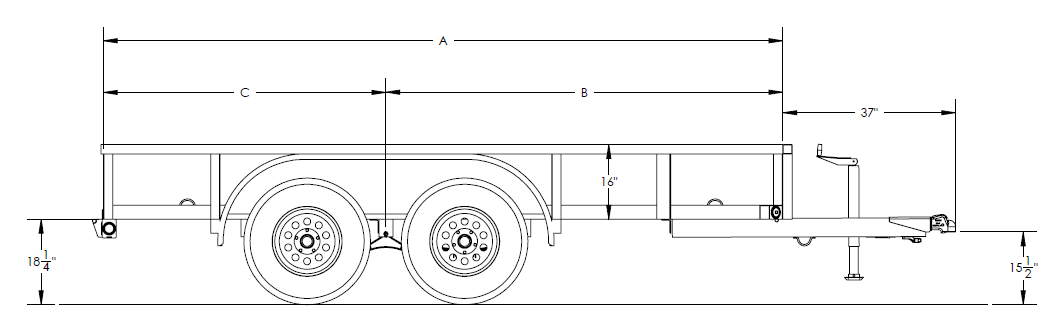

| Model | Pull Type | GVWR | GAWR (Ea. Axle) | Empty Weight | Cargo Capacity | Bed Length | Bed Width | A | B | C | Tongue Length |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 60PI-12 | Bumperpull | 6000 lbs | 3500 lbs | 1265 lbs | 4735 lbs | 12' | 77" | 145-1/2" | 85" | 60-1/2" | 37" |
| 60PI-14 | Bumperpull | 6000 lbs | 3500 lbs | 1400 lbs | 4600 lbs | 14' | 77" | 169-1/2" | 103" | 72-1/2" | 37" |
| 60PI-16 | Bumperpull | 6000 lbs | 3500 lbs | 1535 lbs | 4465 lbs | 16' | 77" | 193-1/2" | 115" | 78-1/2" | 37" |
WARNING: This product can expose you to chemicals including Arsenic (inorganic arsenic compounds) which is known to the State of California to cause cancer and Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Similar Products
FREQUENTLY ASKED QUESTIONS
Can this trailer handle rough terrain or off-road conditions?
Yes! The 60PI trailer is equipped with multi-leaf spring suspension and an equalizer to absorb shocks on uneven terrain. For more extreme conditions, upgrading the tires or adding reinforcements can enhance performance. This trailer is as reliable as all the hauling solutions from our company.
How does the trailer perform in wet or icy conditions?
This trailer features electric brakes for dependable stopping power in wet or icy conditions. Its treated pine flooring helps reduce slipping, and for even better traction, you can upgrade to Blackwood Pro rubber-infused lumber.
What are the best tie-down options for securing different types of equipment?
This trailer includes four standard D-rings in the bed, but you can add extra loops or stake pockets for enhanced security. For heavier equipment, using ratchet straps with stake pockets ensures greater stability during transport. Talk to an expert sales representative at a seller near you for questions you may have about tie-down options.
Is this trailer compatible with all types of towing vehicles?
Compatibility depends on your vehicle’s towing capacity and hitch type. This trailer offers multiple coupler options, including a 2” A-frame and a 2-5/16” forged coupler, so be sure to match it with your vehicle’s hitch receiver for a secure connection.
How easy is it to load and unload equipment without a ramp?
While the trailer allows for easy loading, adding an optional rear ramp gate or slide-in ramps makes the process even more convenient. Without a ramp, a loading dock or another lifting solution will be necessary for safe and efficient loading and unloading. Big Tex Trailers is the trusted supplier for trailers that handle your tough jobs.
