22GN
Tandem Dual Wheel Gooseneck

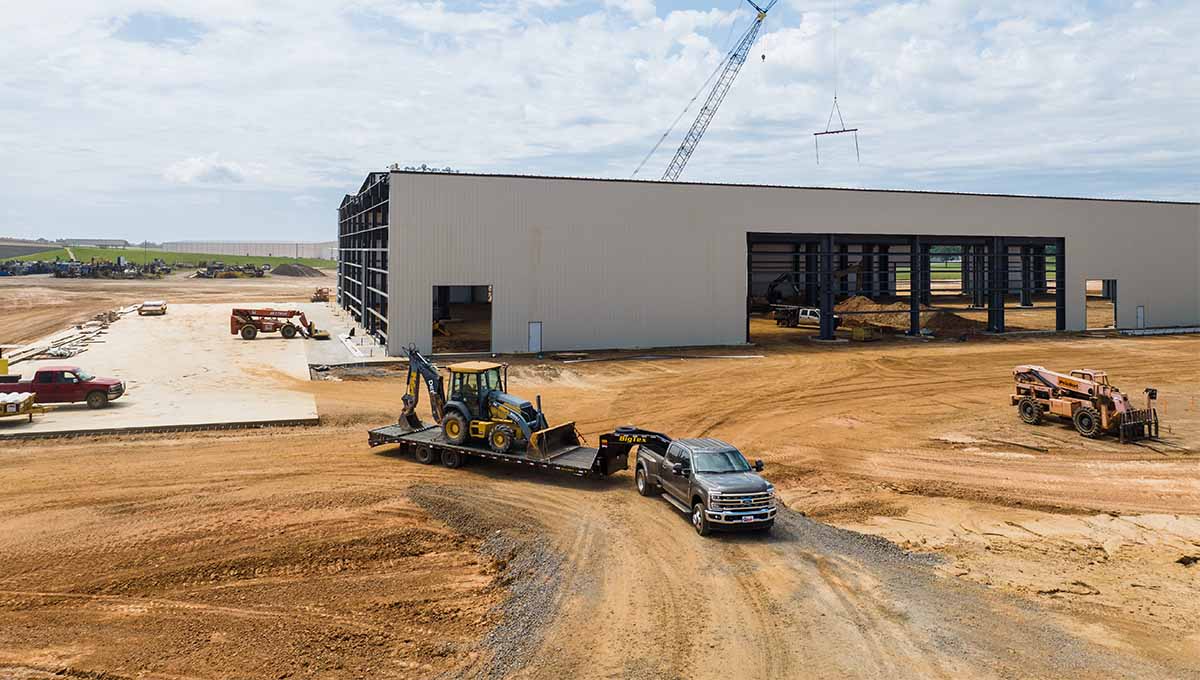

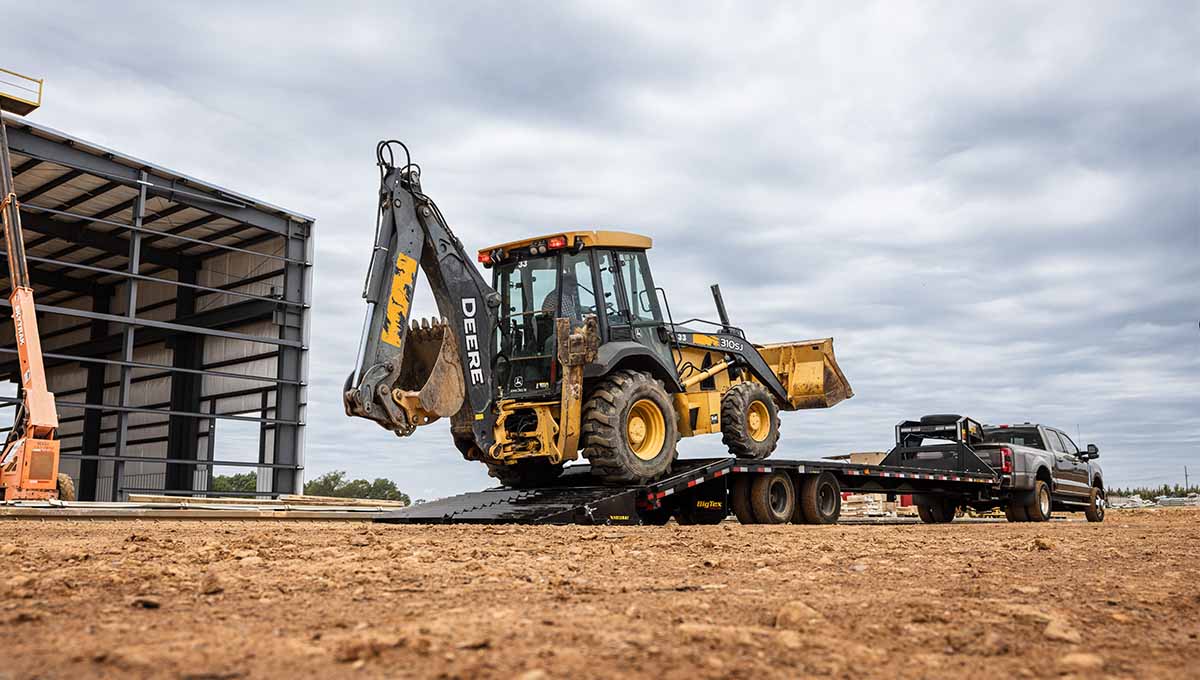

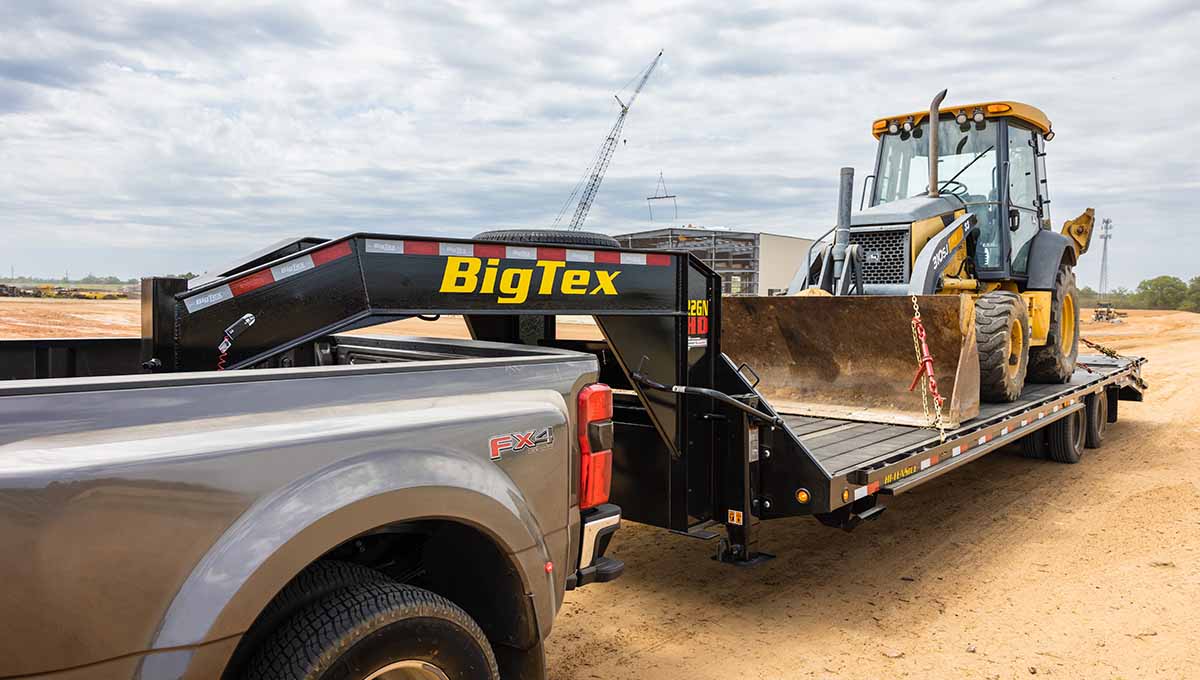

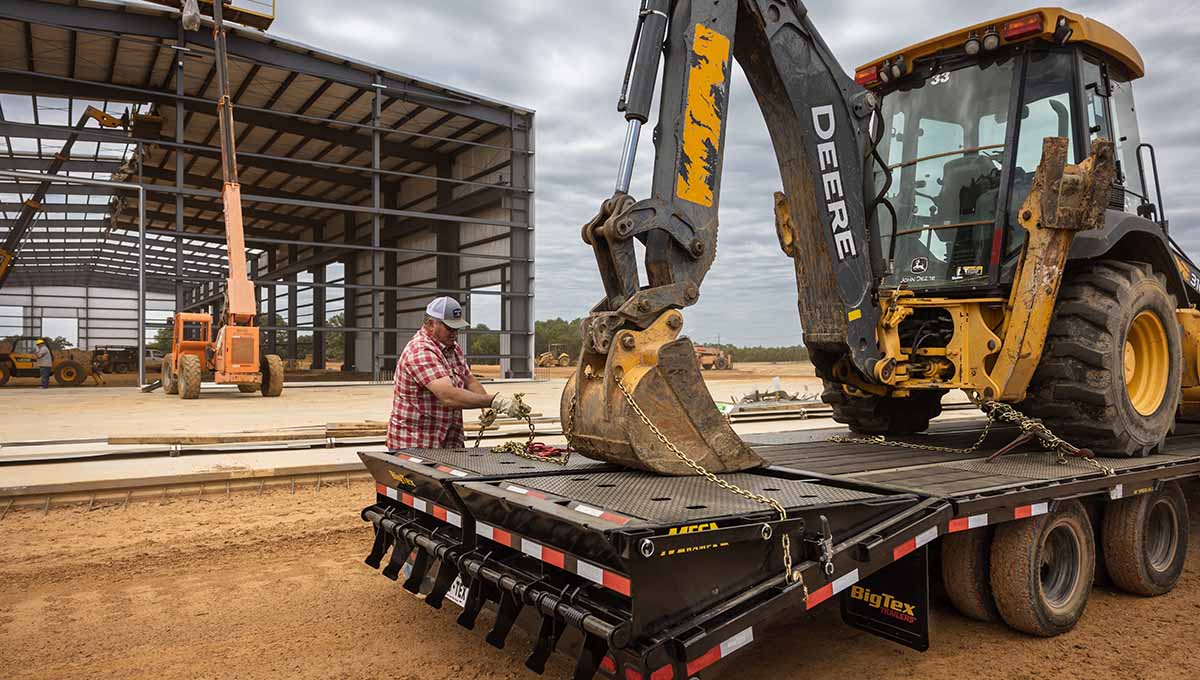

Get the ultimate gooseneck trailer! Big Tex Trailers is your trusted supplier for the 22GN tandem dual flatbed, built for rough jobs and rugged conditions. With dual two-speed 50K landing gear and heavy-duty adjustable suspension, it’s made to handle tough loads with ease — perfect for hauling construction equipment or hotshot trucking. Durable, reliable, and ready to work when you are, just like our company.
With you for the long haul™
| Standard Feature | Available Options | |
|---|---|---|
| Axles | 2 - 10,000# Dual Wheel w/ Oil Bath & Valcrum Caps | |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles | Electric Over Hydraulic Brakes (Disc) |
| Suspension | Heavy-Duty 30,000#, Adjustable | |
| Coupler | 2-5/16” Demco EZ Latch Gooseneck Coupler | |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) | |
| Jack | Dual Two Speed Landing Gear- 50K lbs. Capacity (Bolted On) | Dual Electric Over Hydraulic Landing Gear by Stillwell™ |
| Frame | 12" I-Beam, 19# | |
| Cross-Members | 3" Channel | |
| Floor | Treated Pine Floor | Blackwood Pro Rubber Infused Lumber Floor (per linear foot) |
| Ramps | 5’ Double Hinged Spring Assist Flip-Over Ramps, (STA Models Do Not Include Ramps) | Flip-Over Ramps (Standard on D5A Models) 8' Rear Slide-In Ramps (Available on STA models Only) No Ramps (Standard on STA models) (2) 5' MEGA Ramps (Available on D5A Models Only) |
| Dovetail | 5' Cleated Dovetail (on D5A models only) | |
| Stake Pockets | Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length) | |
| Trailer Plug | 7-Way RV | |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting | |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
| Tires | ST235/80 R-16 Load Range E (Dual) | Tire Upgrade (ST235/80 R-16 LR-G) Includes Spare Tire Upgrade (ST215/75 R-17.5 LR-H Dual) Includes Spare |
| Bolt Pattern | 8-Bolt | |
| Wheels | Black Mod | |
| Spare Mount | Top of Neck Spare Tire Mount | |
| Spare Tire | ST235/80 R-16 Load Range E (Included)` | |
| Paint Type | Professional Finish w/ Primer Standard | |
| Paint Color | Black | |
| Rubrail | 3/8” Heavy Duty Rub Rail on Both Sides | |
| Break-Away Kit | Complete Breakaway System w/ Zip™ Breakaway Cable and Charger | |
| Mudflaps | Standard | |
| Storage | Front Lockable Toolbox Uprights w/ Chain Holder | Low Profile Tool Box 12” x 18” x 36” (Side Mount) Removable Deck on the Neck- Bolt On (8' W x 6' L) |
| Cargo Winch | Sliding Winch Track (standard on Trailer 33' or Longer ) | 4" Sliding Winch (Each) 4" Weld-On Winch (Each) Sliding Winch Track (Per 6' Section), for trailers less than 33' long |
| Pipe Chain Spools | 1-1/4” Pipe Chain Spools Between Stake Pockets Pockets | 4" x 30' Strap Extra 5/8" D-Rings |
| Steps & Handles | (2) Retractable Side Bed Steps + Handles Helping Hand Riser Step | |
| Twist Guard™ | Included on trailers 33' and Longer | |
| Work Light | Deck Work Light Package w/ Step Illumination |
| Model | Pull Type | GVWR | GAWR (Ea. Axle) | Tail Type | Empty Weight | Cargo Capacity | Bed Length | Bed Width | Tongue Length |
|---|---|---|---|---|---|---|---|---|---|
| 22GN-20STA | Gooseneck | 23900 lbs | 10000 lbs | Straight Deck | 5240 lbs | 18660 lbs | 20' | 102" | 97" |
| 22GN-25D5A | Gooseneck | 23900 lbs | 10000 lbs | Dovetail | 6690 lbs | 17210 lbs | 25' | 102" | 97" |
| 22GN-25STA | Gooseneck | 23900 lbs | 10000 lbs | Straight Deck | 5900 lbs | 18000 lbs | 25' | 102" | 97" |
| 22GN-28STA | Gooseneck | 23900 lbs | 10000 lbs | Straight Deck | 6300 lbs | 17600 lbs | 28' | 102" | 97" |
| 22GN-30D5A | Gooseneck | 23900 lbs | 10000 lbs | Dovetail | 7460 lbs | 16440 lbs | 30' | 102" | 97" |
| 22GN-30STA | Gooseneck | 23900 lbs | 10000 lbs | Straight Deck | 6570 lbs | 17330 lbs | 30' | 102" | 97" |
| 22GN-33D5A | Gooseneck | 23900 lbs | 10000 lbs | Dovetail | 7920 lbs | 15980 lbs | 33' | 102" | 97" |
| 22GN-33STA | Gooseneck | 23900 lbs | 10000 lbs | Straight Deck | 6970 lbs | 16930 lbs | 33' | 102" | 97" |
| 22GN-35D5A | Gooseneck | 23900 lbs | 10000 lbs | Dovetail | 8130 lbs | 15770 lbs | 35' | 102" | 97" |
| 22GN-35STA | Gooseneck | 23900 lbs | 10000 lbs | Straight Deck | 7240 lbs | 16660 lbs | 35' | 102" | 97" |
| 22GN-36STA | Gooseneck | 23900 lbs | 10000 lbs | Straight Deck | 7370 lbs | 16530 lbs | 36' | 102" | 97" |
| 22GN-40D5A | Gooseneck | 23900 lbs | 10000 lbs | Dovetail | 8790 lbs | 15110 lbs | 40' | 102" | 97" |
| 22GN-40STA | Gooseneck | 23900 lbs | 10000 lbs | Straight Deck | 8200 lbs | 15700 lbs | 40' | 102" | 97" |
WARNING: This product can expose you to chemicals including Arsenic (inorganic arsenic compounds) which is known to the State of California to cause cancer and Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Similar Products
22PH
Tandem Dual Wheel Pintle
Width: 102"
Length: 25', 30'
GVWR: 23,900 lbs
Cargo Capacity: 17,800—18,300 lbs
3XGN
Super Duty Tandem Dual Gooseneck
Width: 102"
Length: 25', 30', 33', 35', 36', 40'
GVWR: 30,000 lbs
Cargo Capacity: 19,630—23,020 lbs
FREQUENTLY ASKED QUESTIONS
How does this trailer handle rough or uneven terrain?
The 22GN trailer is designed to handle rough and uneven terrain with ease. Its heavy-duty adjustable suspension absorbs shocks, providing a smoother ride and keeping your load secure, even on bumpy roads.
Can this trailer be used for long-distance hauling?
Absolutely! The 22GN is built for long-distance hauling, making it an excellent solution for hotshot trucking. Its rugged construction and advanced suspension system help minimize wear and tear, ensuring a smooth and reliable ride over extended trips. Check the owner’s manual for more details.
What kind of truck do I need to tow this trailer?
You'll need a heavy-duty truck equipped with a gooseneck hitch and a towing capacity that can safely handle both the trailer and its cargo. Be sure to check your truck’s specifications to ensure it meets the required towing capabilities. Inquire with your dealer for more towing capacity information.
Does this trailer work well in extreme weather conditions?
Yes! This trailer is constructed with high-quality, weather-resistant materials to endure rain, snow, and extreme heat, ensuring reliable performance in harsh conditions.
Is this trailer easy to load and unload?
Yes, the trailer's sturdy deck and adjustable suspension make loading and unloading heavy equipment easier, safer, and more efficient.
What type of maintenance does this trailer need?
Routine maintenance includes monitoring tire pressure, lubricating the axles, and inspecting the suspension and landing gear to ensure optimal performance and longevity. Check with the expert sales team at a dealer near you for more maintenance information.
Does this trailer require any special permits?
Permit requirements vary by state and depend on your load's weight. You may need a commercial driver’s license (CDL) or special permits for oversized or heavy hauls. Check local regulations to ensure compliance with any of our products.
