14LX
Channel Tandem Axle Dump Trailer
Tested Big Tex Tough. Value Guaranteed. The 14LX gives you unbeatable value without cutting corners on quality. Built with a tough 6–inch channel frame and tongue, it delivers the strength and durability you need. At an affordable price, with key features like a hydraulic scissor lift system with power up, power down, and gravity down, forward self–adjusting brakes, and a heavy–duty adjustable coupler. Whether you're hauling equipment or loose materials, the 14LX is ready for your toughest jobs. Choose the 14LX and enjoy premium performance at a price that works for you.
With you for the long haul™
| Standard Feature | Available Options | |
|---|---|---|
| Axles | 2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs | |
| Brakes | Forward Self-Adjusting Electric Brakes on All Hubs | |
| Suspension | Multi-Leaf Spring w/ Equalizer | |
| Tongue | 6" Channel | |
| Coupler | Adjustable 2-5/16" Coupler | Adjustable Pintle in Channel in Lieu of Coupler |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) | |
| Jack | 7,000# Top Wind Drop Leg Jack | |
| Frame | 6" Channel | |
| Cross-Members | 3" Channel on 16" Centers | |
| Floor | 10 Gauge Smooth Steel | |
| Fenders | 9” x 72” 14 Ga. Diamond Plate Double Square Broke | |
| Ramps | 6.5' Slide in Ramps with Integrated Ramp Door | |
| Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) | |
| Trailer Plug | 7-Way RV | |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting | |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
| Tires | ST235/80 R-16 Load Range-E 10 Ply Radial Tires | |
| Bolt Pattern | 6 Bolt | |
| Wheels | Black Mod Steel | |
| Spare Mount | Side Spare Tire Mount | |
| Spare Tire | Not Included | Spare Tire & Wheel (ST235/80 R-16 LR-E 10 Ply) |
| Paint Type | Professional Finish w/ Primer Standard | |
| Paint Color | Black | |
| Tie-Downs | (4) 1/2" D-Rings Inside Bed to Secure Equipment | |
| Break-Away Kit | Complete System with Breakaway Cable | |
| Battery | 12V Deep Cycle | |
| Charger | 5A 110V on Board Battery Charger | |
| Gate | Rear Combo Gate (Barn Doors & Spreader Gate) | |
| J-Hooks | Along Rear for Cargo Control | |
| Power | Power Up/Power Down & Gravity Down Hydraulic Pump | 5 Watt Solar Charger Wireless Remote |
| Ram | Self-Contained Scissor | |
| Sides | 24" Tall (10 Ga) with formed Channel Supports | 4' Solid Sheet Metal Sides Board Bracket Kit (6) |
| Stabilizers | Rear Stabilizer Stands | |
| Storage | Lockable Pump and Battery Box mounted in Front of Bed | |
| Tarp | Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders | |
| Top Rail | 3"x 2" Rectangular Tubing |

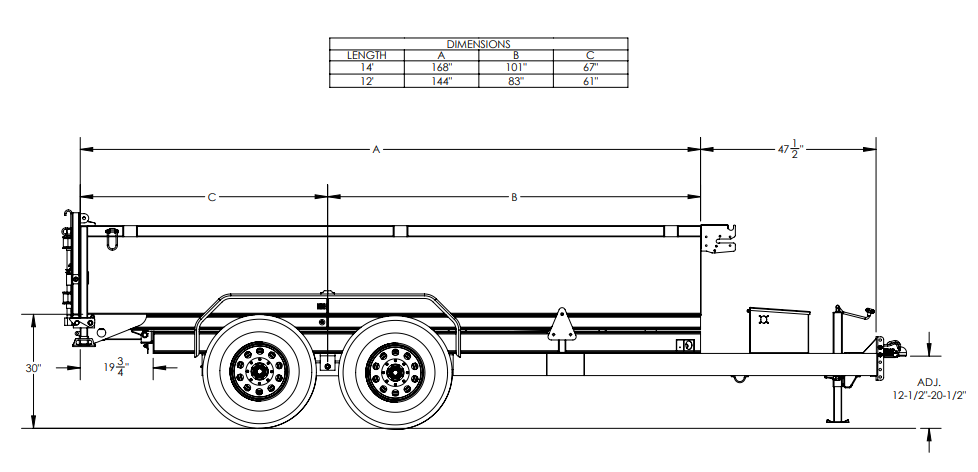

| Model | Pull Type | GVWR | GAWR (Ea. Axle) | Empty Weight | Cargo Capacity | Bed Length | Bed Width | A | B | C | Tongue Length |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 14LX-12 | Bumperpull | 14000 lbs | 7000 lbs | 3430 lbs | 10570 lbs | 12' | 83" | 144" | 84" | 61" | 47-1/2" |
| 14LX-14 | Bumperpull | 14000 lbs | 7000 lbs | 3660 lbs | 10340 lbs | 14' | 83" | 168" | 100" | 68" | 47-1/2" |
WARNING: This product can expose you to chemicals including Arsenic (inorganic arsenic compounds) which is known to the State of California to cause cancer and Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Similar Products
New!
10LX
Channel Tandem Axle Dump Trailer
Width: 83"
Length: 12'
GVWR: 9,990 lbs
Cargo Capacity: 6,760 lbs
16RD
Roll-Off Gooseneck Dump Trailer (Bin Sold Separately)
Width: 83"
Length: 14'
GVWR: 17,500 lbs
Cargo Capacity: 11,460 lbs
FREQUENTLY ASKED QUESTIONS
How often should I clean the 14LX trailer bed after hauling materials?
Clean the trailer bed after every haul to maintain the smooth 10–gauge steel floor and prevent debris buildup. This simple step helps extend the life of your Big Tex trailer.
What’s an easy way to store the trailer when not in use?
Store the trailer on level ground and deploy the drop leg jack for steady, tool–free stability. Our pro sales team recommends this method to keep your 14LX secure and ready for its next job.
Do I need to oil or maintain the hydraulic lift system often?
The 14LX’s reliable scissor lift system requires minimal upkeep. Simply check hydraulic fluid levels seasonally to keep everything running smoothly.
How can I protect the battery and pump when the trailer is stored outdoors?
Our products feature a lockable front box that guards the battery and pump against weather, dust, and theft, ensuring long–term performance.
What’s the best way to rinse off dirt from the sides and fenders?
Use a standard hose or pressure washer. The durable professional–grade finish and diamond plate fenders are designed to withstand tough cleanings.
Can I use the 14LX to haul gravel for a driveway?
Absolutely! The smooth steel bed and combo gate offer controlled dumping, making gravel work fast and efficient.
Is it useful for small farm projects?
Yes – the 14LX is ideal for transporting fencing, feed, tools, and brush. Our company provides dependable solutions for farm and ranch work.
