14GN
Single Wheel Tandem Axle Gooseneck
The 14GN single wheel tandem axle gooseneck trailer is built to make your tough work easier and more efficient. Designed for strength and durability, this medium-duty, single-wheel trailer delivers reliable performance for contractors, farmers, and equipment haulers. Equipped with LED lights, a treated floor, dual jacks, and an adjustable coupler, the 14GN provides the professional-grade solution you need to tackle any job with confidence. Big Tex Trailers work as hard as you do — get the job done faster and with less hassle with our products built for tough jobs.
With you for the long haul™
| Standard Feature | Available Options | |
|---|---|---|
| Axles | 2 - 7,000# Premium, with Quick-Lubricating Hubs | |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles | Electric Over Hydraulic Brakes (Drum) |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer | |
| Coupler | 2-5/16” Demco EZ Latch Gooseneck Coupler | |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) | |
| Jack | Dual 12,000# Drop Leg Jacks (Bolted on) w/Greasable Handle | Dual 2-Speed Landing Gear Dual Electric Over Hydraulic Landing Gear by Stillwell™ |
| Frame | 12" I-Beam, 14# (16# I-Beam for 28' and longer) | |
| Cross-Members | 3" Channel | |
| Floor | Treated Pine Floor | |
| Ramps | 5’ Double Hinged Spring Assist Flip-Over Ramps, (STA Models Do Not Include Ramps) | 8' Rear Slide-In Ramps (STA Models Only) (2) 5' MEGA Ramps |
| Dovetail | 5' Cleated Dovetail (Standard on D5A Models) Straight Deck | |
| Stake Pockets | Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length) | |
| Trailer Plug | 7-Way RV | |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting | |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
| Tires | ST235/80 R-16 Load Range E | Tire Upgrade (ST235/80 R-16 LR-G) Includes Spare |
| Bolt Pattern | 8-Bolt | |
| Spare Mount | Top of Neck Spare Tire Mount | |
| Spare Tire | ST235/80 R-16 Load Range E (Included)` | |
| Paint Type | Professional Finish w/ Primer Standard | |
| Paint Color | Black | |
| Rubrail | 3/8” Heavy Duty Rub Rail on Both Sides | |
| Break-Away Kit | Complete Breakaway System w/ Zip™ Breakaway Cable and Charger | |
| Storage | Front Lockable Toolbox Uprights w/ Chain Holder | Low Profile Tool Box 15” x 15” x 36” (Side Mount) Removable Deck on the Neck- Bolt On (8' W x 6' L) |
| Cargo Winch | 4" Sliding Winch (Each) 4" Weld-On Winch (Each) Sliding Winch Track (Per 6' Section), for trailers less than 33' long | |
| Pipe Chain Spools | 1-1/4” Pipe Chain Spools Between Stake Pockets Pockets | 4" x 30' Strap Extra 5/8" D-Rings |
| Steps & Handles | (2) Side Bed Steps + Handles | |
| Work Light | Deck Work Light Package w/ Step Illumination |

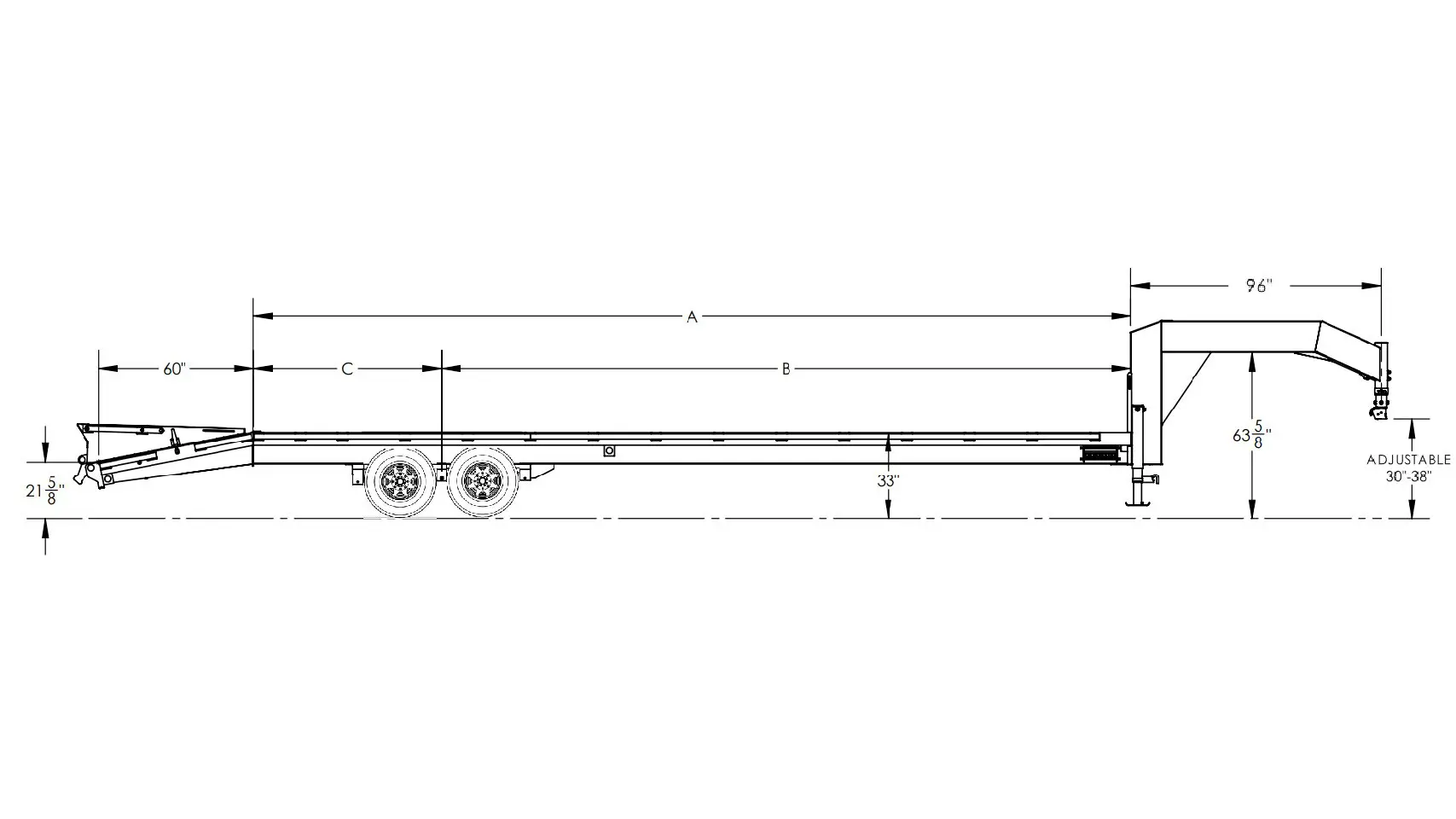

| Model | Pull Type | GVWR | GAWR (Ea. Axle) | Tail Type | Empty Weight | Cargo Capacity | Bed Length | Bed Width | A | B | C | Tongue Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14GN-20STA | Gooseneck | 15900 lbs | 7000 lbs | Straight Deck | 4270 lbs | 11630 lbs | 20' | 102" | 240" | 160" | 80" | 97" |
| 14GN-25D5A | Gooseneck | 15900 lbs | 7000 lbs | Dovetail | 5310 lbs | 10590 lbs | 20' | 102" | 300" | 186" | 114" | 97" |
| 14GN-22STA | Gooseneck | 15900 lbs | 7000 lbs | Straight Deck | 4520 lbs | 11380 lbs | 22' | 102" | 264" | 177" | 87" | 97" |
| 14GN-25STA | Gooseneck | 15900 lbs | 7000 lbs | Straight Deck | 4890 lbs | 11010 lbs | 25' | 102" | 300" | 186" | 144" | 97" |
| 14GN-27D5A | Gooseneck | 15900 lbs | 7000 lbs | Dovetail | 5630 lbs | 10270 lbs | 27' | 102" | 324" | 210" | 114" | 97" |
| 14GN-28STA | Gooseneck | 15900 lbs | 7000 lbs | Straight Deck | 5260 lbs | 10640 lbs | 28' | 102" | 336" | 218" | 118" | 97" |
| 14GN-30D5A | Gooseneck | 15900 lbs | 7000 lbs | Dovetail | 6000 lbs | 9900 lbs | 30' | 102" | 360" | 240" | 120" | 97" |
| 14GN-30STA | Gooseneck | 15900 lbs | 7000 lbs | Straight Deck | 5510 lbs | 10390 lbs | 30' | 102" | 360" | 240" | 120" | 97" |
| 14GN-33D5A | Gooseneck | 15900 lbs | 7000 lbs | Dovetail | 6500 lbs | 9400 lbs | 33' | 102" | 396" | 264" | 132" | 97" |
| 14GN-35D5A | Gooseneck | 15900 lbs | 7000 lbs | Dovetail | 6620 lbs | 9280 lbs | 35' | 102" | 420" | 280" | 140" | 97" |
| 14GN-35STA | Gooseneck | 15900 lbs | 7000 lbs | Straight Deck | 6140 lbs | 9760 lbs | 35' | 102" | 420" | 280" | 140" | 97" |
| 14GN-40D5A | Gooseneck | 15900 lbs | 7000 lbs | Dovetail | 7190 lbs | 8710 lbs | 40' | 102" | 480" | 320" | 160" | 97" |
| 14GN-40STA | Gooseneck | 15900 lbs | 7000 lbs | Straight Deck | 7000 lbs | 8900 lbs | 40' | 102" | 480" | 320" | 160" | 97" |
WARNING: This product can expose you to chemicals including Arsenic (inorganic arsenic compounds) which is known to the State of California to cause cancer and Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Similar Products
5XPH
Triple Axle Pintle Heavy Equipment Transport
Width: 102"
Length: 29', 33'
GVWR: 58,000 lbs
Cargo Capacity: 47,150—47,650 lbs
4XPH
Pintle Heavy Equipment Transport
Width: 102"
Length: 25', 29'
GVWR: 48,000 lbs
Cargo Capacity: 37,850—39,050 lbs
FREQUENTLY ASKED QUESTIONS
What type of work is the 14GN single wheel tandem axle gooseneck trailer best for?
The 14GN single wheel tandem axle gooseneck trailer is ideal for contractors, farmers, and equipment haulers. Designed for versatility, it excels at transporting tools, materials, and heavy machinery, making it a reliable choice for demanding jobs in construction, agriculture, and industrial settings.
Is the 14GN trailer easy to use?
Absolutely! The 14GN trailer is built for convenience and efficiency. User-friendly design elements include dual jacks for quick, stable setup, an adjustable coupler for seamless vehicle attachment, and bright LED lights for enhanced visibility. We’re the go-to supplier for easier and more reliable hauling.
What makes the 14GN trailer durable?
The 14GN trailer is engineered for durability, featuring a rugged steel frame, a treated wood floor for enhanced resistance to wear and tear, and a sturdy design built to handle demanding work conditions. Whether you’re transporting heavy equipment or materials, our company is a trusted source for trailers built to last.
Can the 14GN trailer be used in different weather conditions?
Yes, the 14GN is built to withstand various weather conditions. Its robust construction provides durability in harsh environments, while LED lights enhance visibility and safety in rain, fog, or low-light settings, ensuring reliable performance year-round.
How does the 14GN trailer improve efficiency on the job?
The 14GN trailer enhances efficiency with its low-profile design for easy loading and unloading of heavy equipment. Its adjustable coupler ensures a secure fit with your towing vehicle, while dual jacks provide quick and stable setup, helping you save time and effort on the job site. Talk with an expert sales team at a trusted seller for help choosing the perfect trailer.
